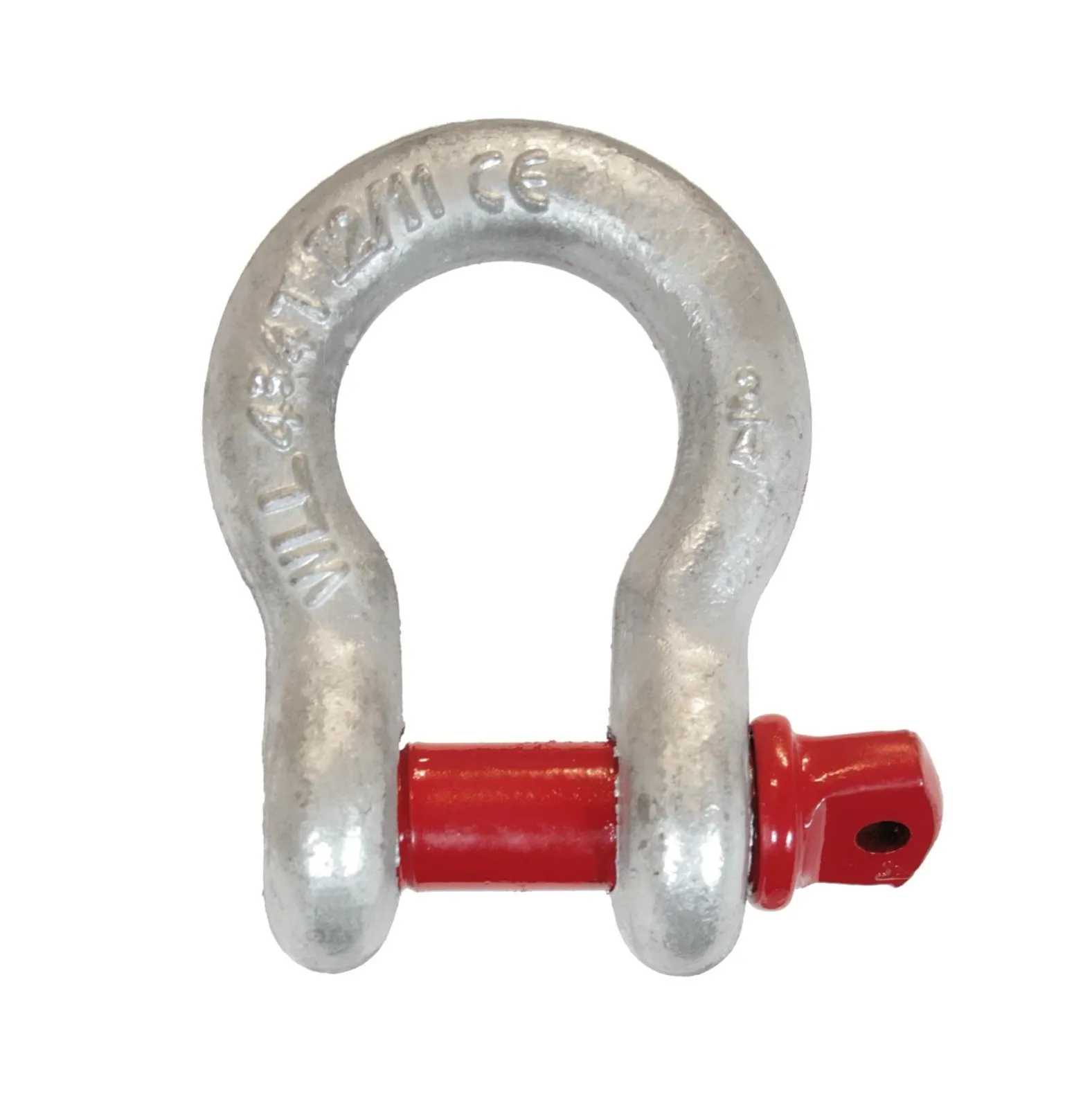

G-209 Screw Pin Anchor Shackle / Bow Shackle
Standard: US federal specification RR-C-271 D Type IVA, Grade A / BSEN 13889 (Safety factor 6:1)
| Screw Pin Bow Shackle |
| Size (in) |
W.L.L. (Tons) |
Weight (kgs) |
| 1/4" |
0.5 |
0.05 |
| 5/16" |
0.75 |
0.09 |
| 3/8" |
1.00 |
0.14 |
| 7/16" |
1.50 |
0.17 |
| 1/2" |
2.00 |
0.33 |
| 5/8" |
3.25 |
0.62 |
| 3/4" |
4.75 |
1.07 |
| 7/8" |
6.50 |
1.64 |
| 1" |
8.50 |
2.28 |
| 1-1/8" |
9.50 |
3.36 |
| 1-1/4" |
12.00 |
4.31 |
| 1-3/8" |
13.50 |
6.14 |
| 1-1/2" |
17.00 |
7.80 |
| 1-3/4" |
25.00 |
14.02 |
| 2" |
35.00 |
20.40 |
| 2-1/2" |
55.00 |
38.90 |

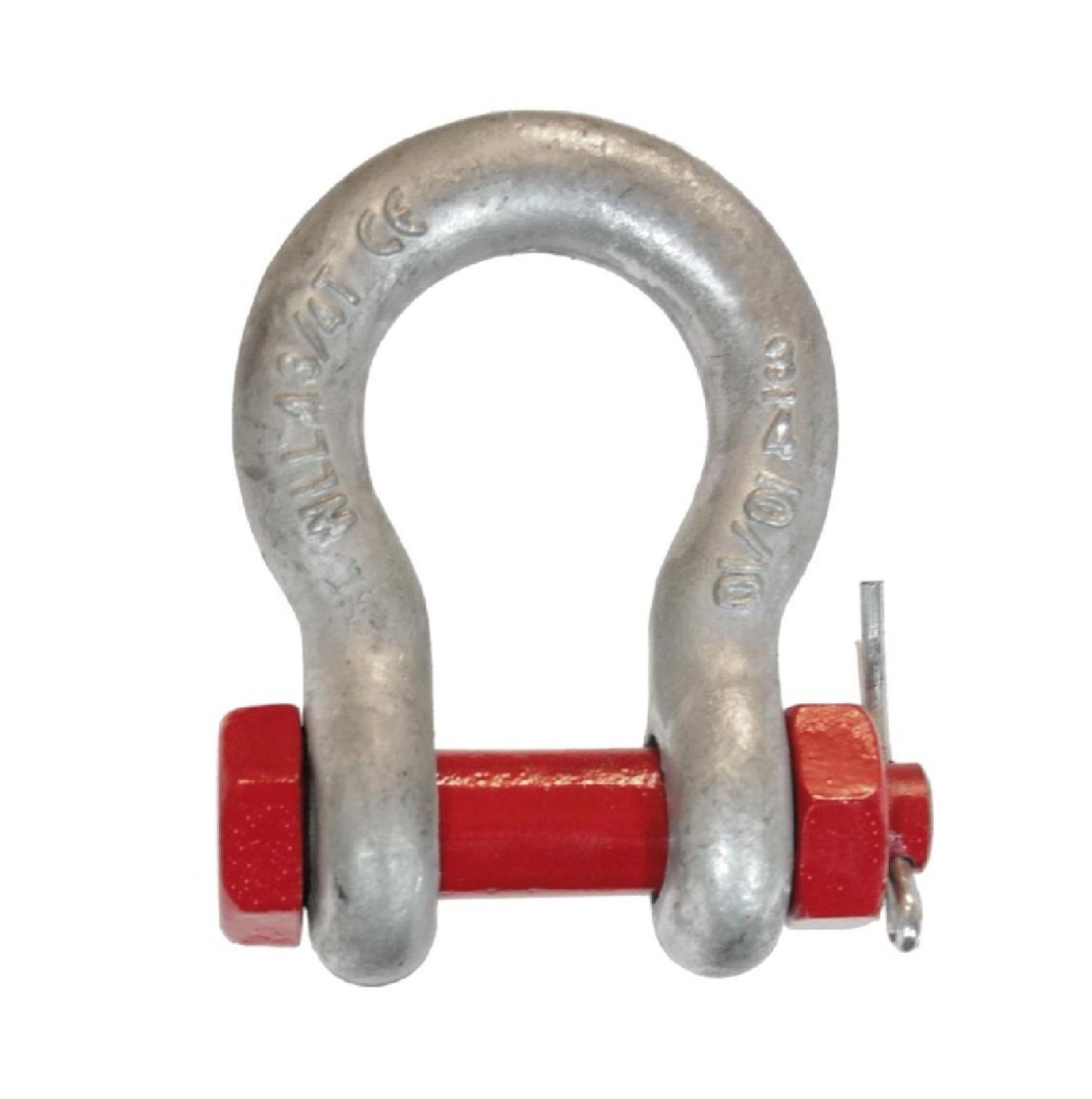

G-2130 Safety Pin Anchor Shackle / Bow Shackle
Standard: US federal specification RR-C-271 D Type IVA, Grade A / BSEN 13889 (Safety factor 6:1)
| Safety Pin Bow Shackle |
| Size (in) |
W.L.L. (Tons) |
Weight (kgs) |
| 3/8" |
1.00 |
0.15 |
| 7/16" |
1.50 |
0.22 |
| 1/2" |
2.00 |
0.36 |
| 5/8" |
3.25 |
0.76 |
| 3/4" |
4.75 |
1.23 |
| 7/8" |
6.50 |
1.79 |
| 1" |
8.50 |
2.57 |
| 1-1/8" |
9.50 |
3.75 |
| 1-1/4" |
12.00 |
5.31 |
| 1-3/8" |
13.50 |
7.18 |
| 1-1/2" |
17.00 |
8.62 |
| 1-3/4" |
25.00 |
15.40 |
| 2" |
35.00 |
23.70 |
| 2-1/2" |
55.00 |
44.60 |
| 3" |
85.00 |
69.90 |
| 3-1/2" |
120.00 |
120.00 |
| 4" |
150.00 |
153.00 |

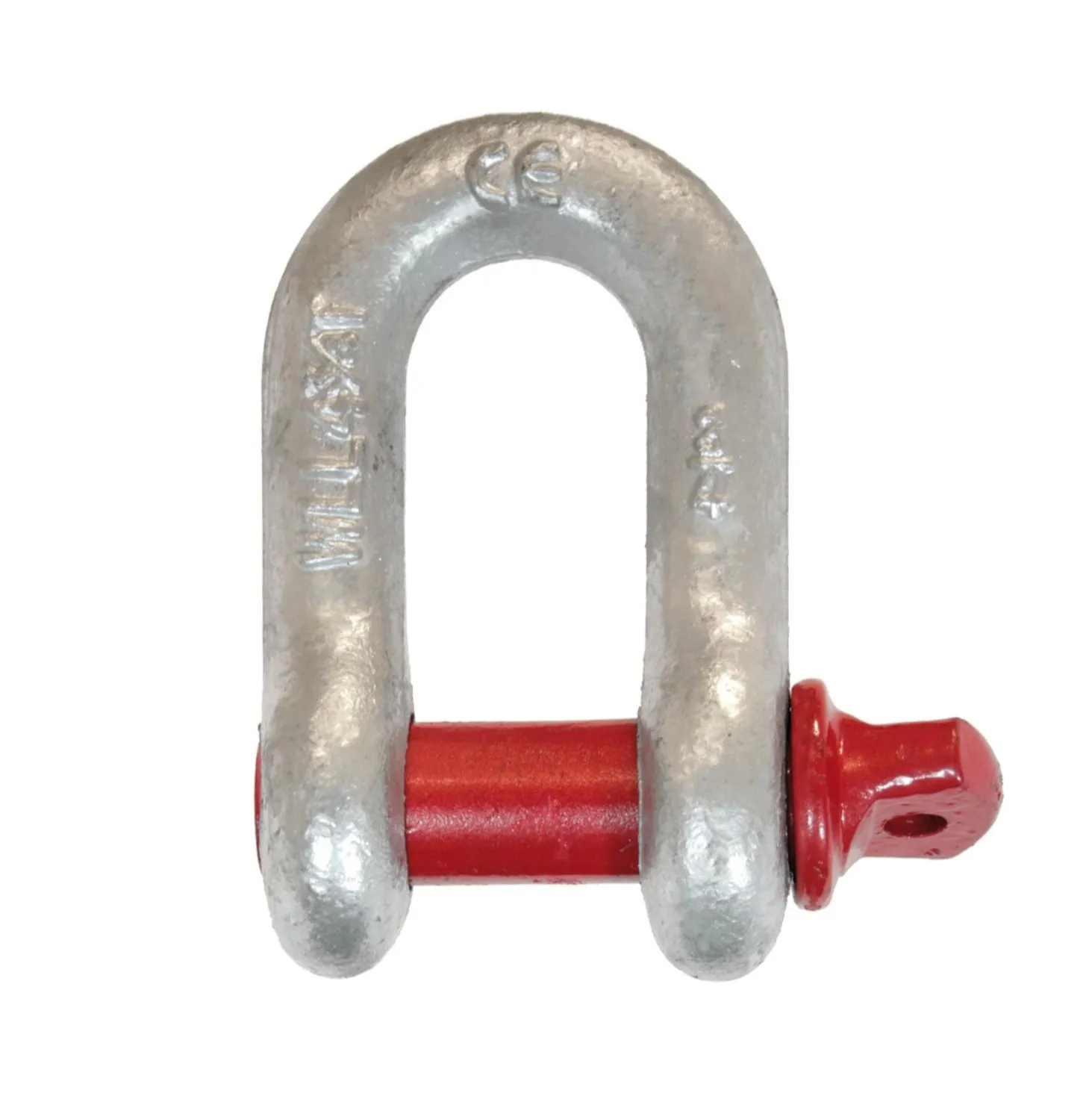

G-210 Screw Pin Chain Shackle / D-Shackle
Standard: US federal specification RR-C-271 D Type IVA, Grade A / BSEN 13889 (Safety factor 6:1)
| Screw Pin D-Shackle |
| Size (in) |
W.L.L. (Tons) |
Weight (kgs) |
| 1/4" |
0.5 |
0.05 |
| 5/16" |
0.75 |
0.08 |
| 3/8" |
1.00 |
0.13 |
| 7/16" |
1.50 |
0.20 |
| 1/2" |
2.00 |
0.29 |
| 5/8" |
3.25 |
0.57 |
| 3/4" |
4.75 |
1.03 |
| 7/8" |
6.50 |
1.43 |
| 1" |
8.50 |
2.15 |
| 1-1/8" |
9.50 |
3.06 |
| 1-1/4" |
12.00 |
4.11 |
| 1-3/8" |
13.50 |
5.28 |
| 1-1/2" |
17.00 |
7.23 |
| 1-3/4" |
25.00 |
12.10 |
| 2" |
35.00 |
19.20 |
| 2-1/2" |
55.00 |
32.50 |

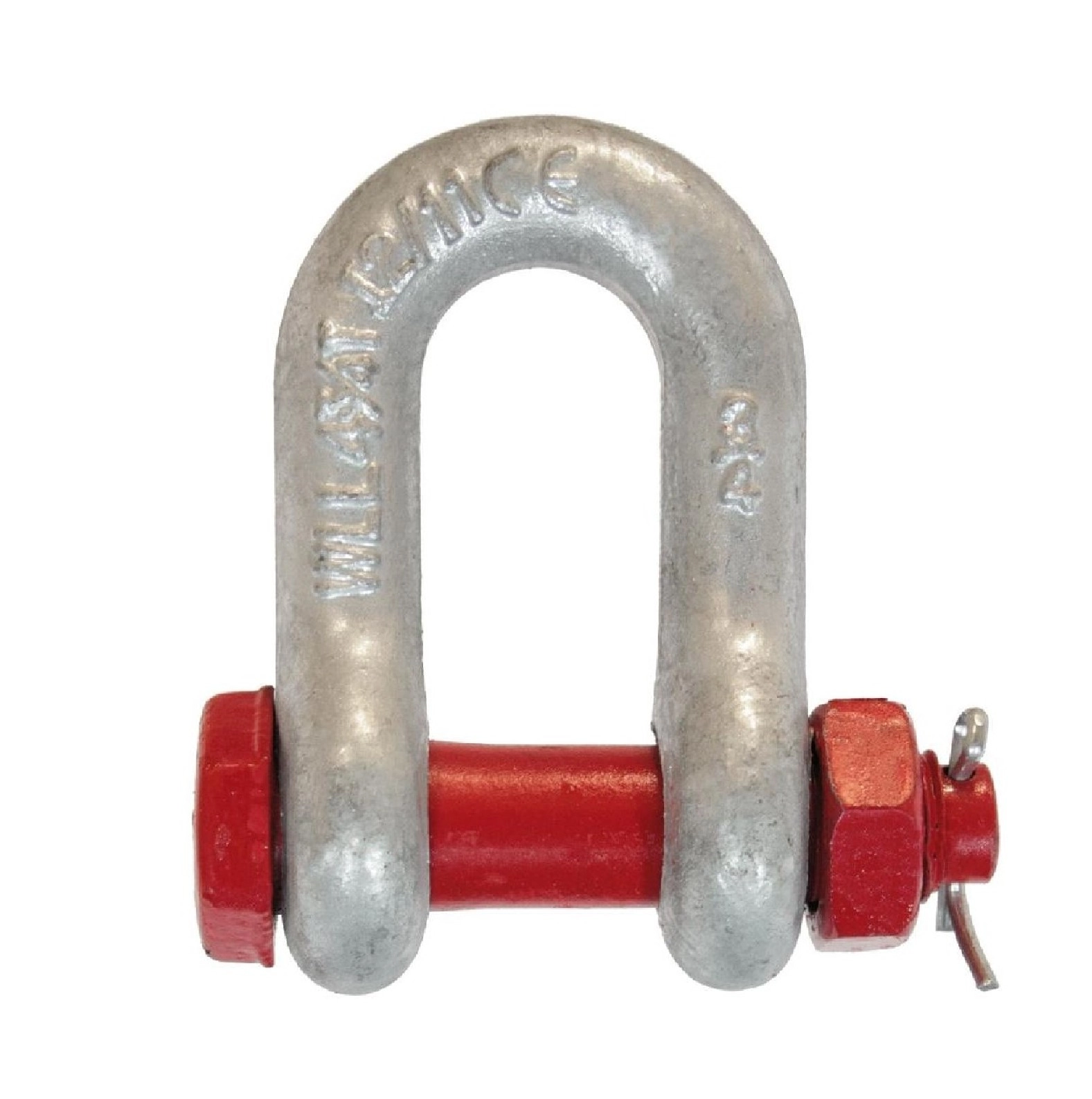

G-2150 Safety Pin Chain Shackle / D-Shackle
Standard: US federal specification RR-C-271 D Type IVA, Grade A / BSEN 13889 (Safety factor 6:1)
| Safety Pin D-Shackle |
| Size (in) |
W.L.L. (Tons) |
Weight (kgs) |
| 3/8" |
1.00 |
0.15 |
| 7/16" |
1.50 |
0.22 |
| 1/2" |
2.00 |
0.34 |
| 5/8" |
3.25 |
0.67 |
| 3/4" |
4.75 |
1.14 |
| 7/8" |
6.50 |
1.75 |
| 1" |
8.50 |
2.52 |
| 1-1/8" |
9.50 |
3.45 |
| 1-1/4" |
12.00 |
4.90 |
| 1-3/8" |
13.50 |
6.24 |
| 1-1/2" |
17.00 |
7.72 |
| 1-3/4" |
25.00 |
14.20 |
| 2" |
35.00 |
21.20 |
| 2-1/2" |
55.00 |
38.60 |
| 3" |
85.00 |
56.40 |

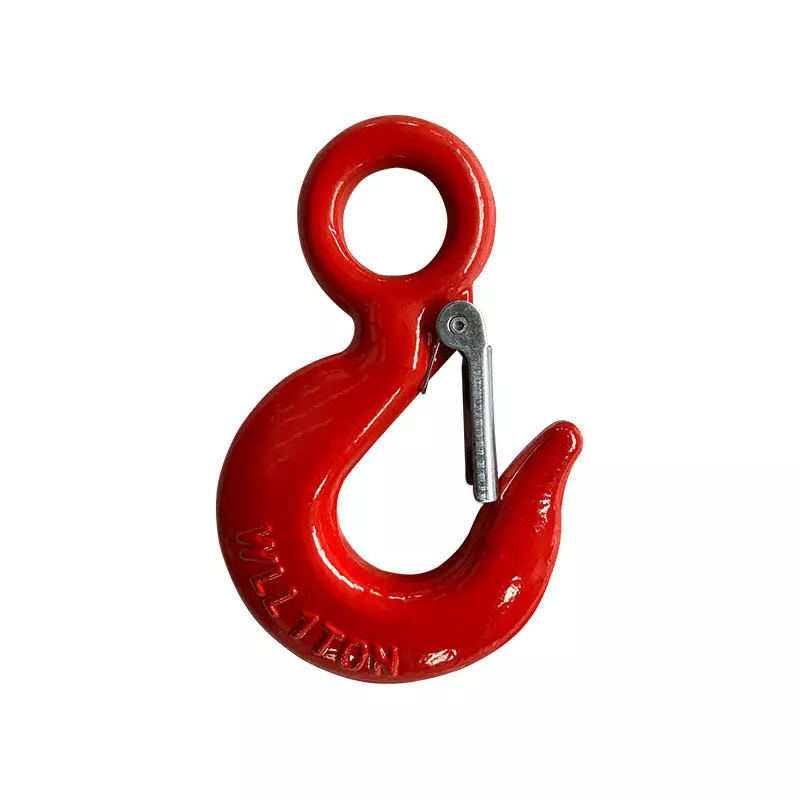

Eye Sling Hook With Safety Latch
US Standard (Safety factor 5:1)
| Red Color Cargo Hook With Latch |
| W.L.L. (Tons) |
Weight (kgs) |
| 0.50 |
0.18 |
| 1.00 |
0.36 |
| 1.50 |
0.60 |
| 2.00 |
1.00 |
| 3.00 |
1.70 |
| 5.00 |
3.90 |
| 7.50 |
6.00 |
| 10.00 |
10.20 |
Swivel Eye Sling Hook With Safety Latch
US Standard (Safety factor 5:1)
| Red Color Swivel Cargo Hook With Latch |
| W.L.L. (Tons) |
Weight (kgs) |
| 1.00 |
0.58 |
| 1.50 |
1.04 |
| 2.00 |
1.18 |
| 3.00 |
2.20 |
| 5.00 |
4.71 |
| 7.50 |
7.46 |
| 10.00 |
10.65 |

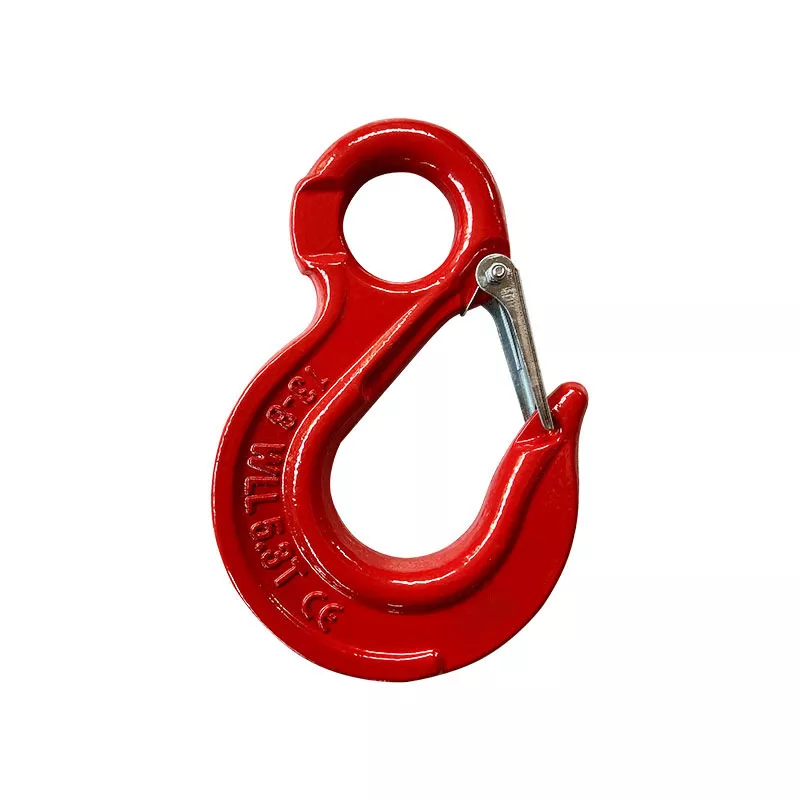

Grade 80 Eye Hook With Safety Latch
Standard Specification EN 1677-2 (Safety factor 4:1)
| Grade 80 Eye Hook |
| Size |
W.L.L. (Tons) |
Weight (kgs) |
| 7/8 - 8 |
2.00 |
0.52 |
| 10 - 8 |
3.15 |
0.90 |
| 13 - 8 |
5.30 |
1.70 |
| 16 - 8 |
8.00 |
3.20 |
| 20 - 8 |
12.50 |
5.80 |

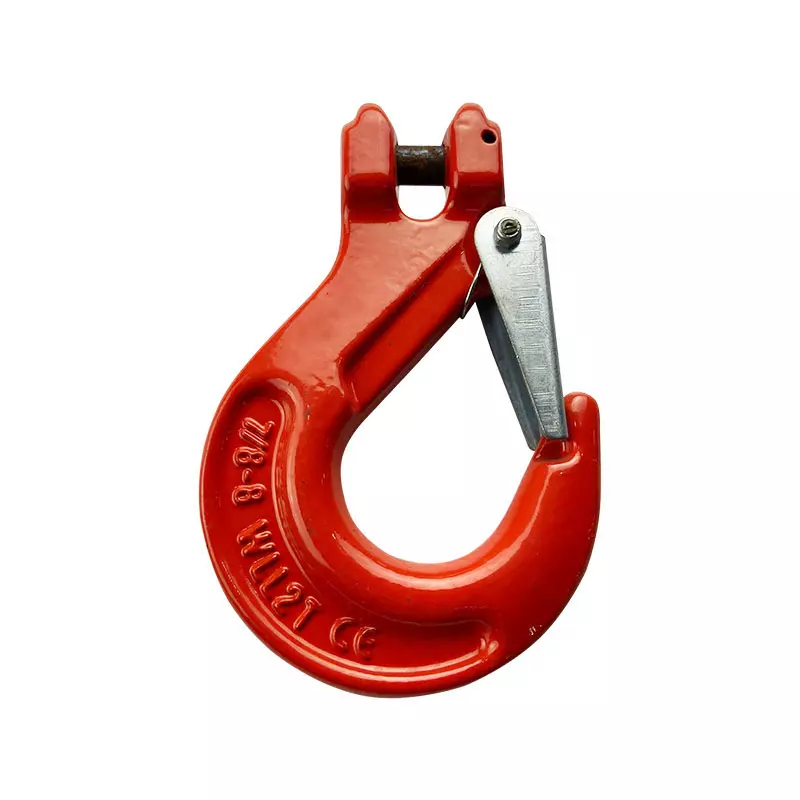

Grade 80 Clevis Hook With Safety Latch
Standard Specification EN 1677-2 (Safety factor 4:1)
| Grade 80 Clevis Hook |
| Size |
W.L.L. (Tons) |
Weight (kgs) |
| 7/8 - 8 |
2.00 |
0.52 |
| 10 - 8 |
3.15 |
1.05 |
| 13 - 8 |
5.30 |
2.00 |
| 16 - 8 |
8.00 |
3.70 |
| 20 - 8 |
12.50 |
6.00 |

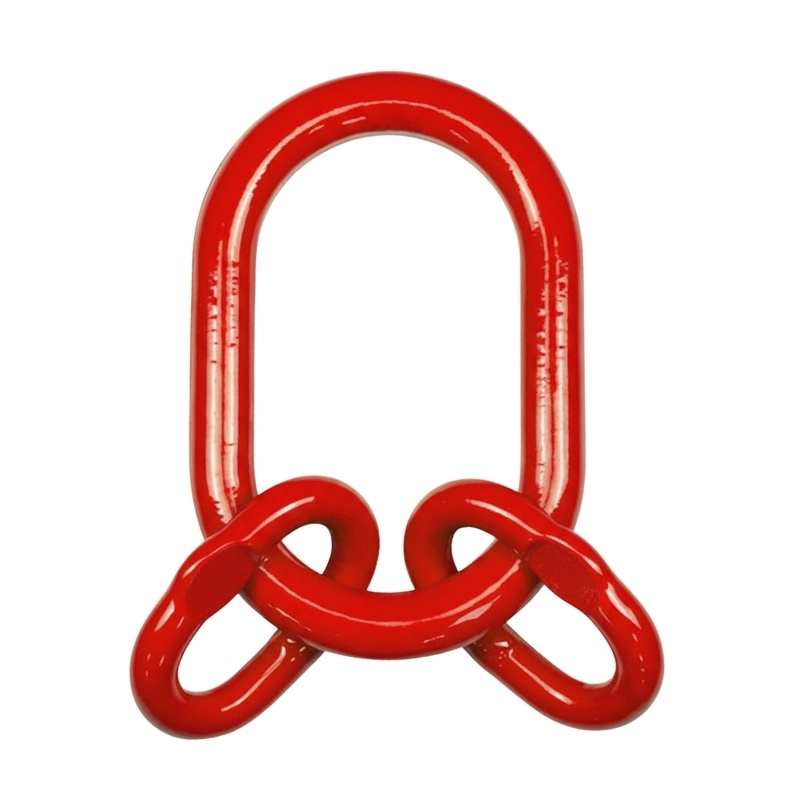

Grade 80 Master Link Assembly
Standard Specification EN 1677-4 (Safety factor 4:1)
| Grade 80 Master Link Assembly |
| Size |
W.L.L. (Tons) |
Weight (kgs) |
| 8 - 8 |
2.00 |
2.20 |
| 10 - 8 |
3.15 |
3.40 |
| 13 - 8 |
5.30 |
6.10 |
| 16 - 8 |
8.00 |
9.98 |
| 20 - 8 |
12.50 |
23.70 |

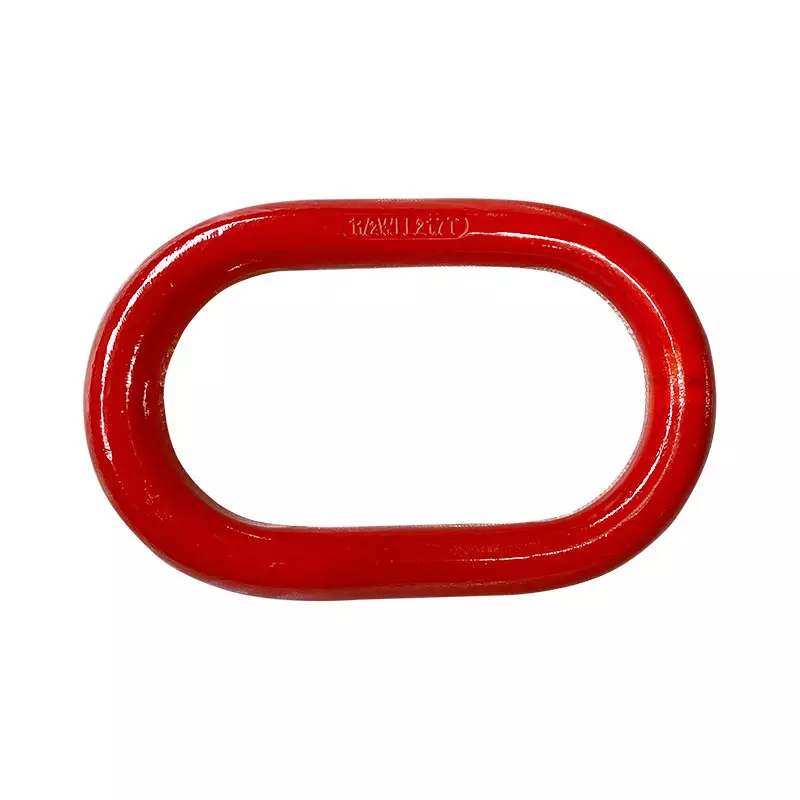

Grade 80 Master Link
Standard Specification EN 1677-4 (Safety factor 4:1)
| Master Link |
| Size |
W.L.L. (Tons) |
Weight (kgs) |
| 8 - 8 |
2.00 |
1.10 |
| 10 - 8 |
3.15 |
1.53 |
| 13 - 8 |
5.30 |
7.30 |
| 16 - 8 |
8.00 |
10.78 |
| 20 - 8 |
12.50 |
12.20 |
